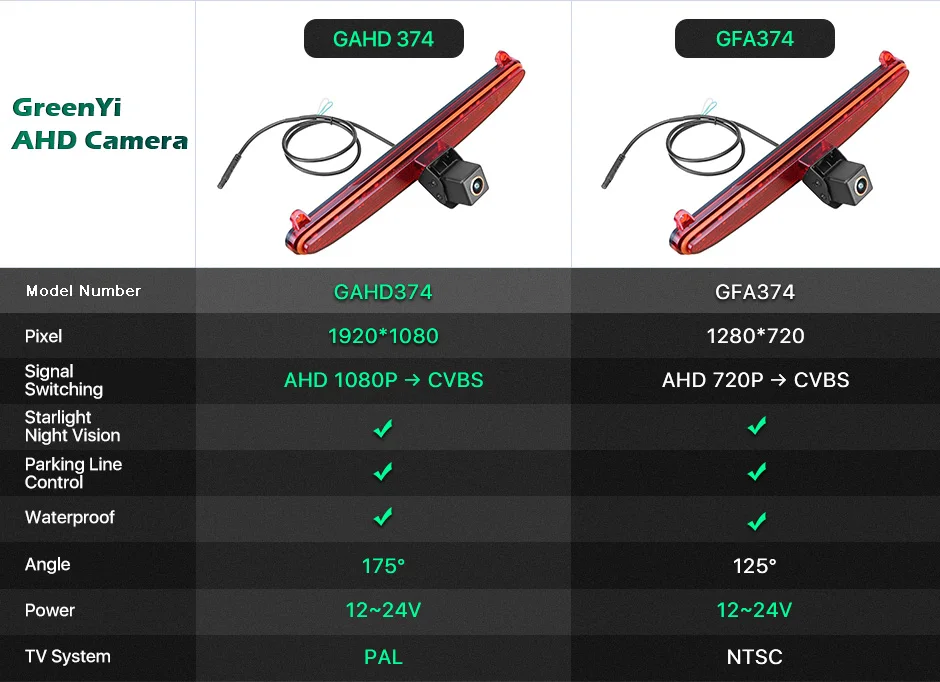

2 Cameras Style Optional
Tips, About GAHD Style: Please check whether the Android unit supports AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

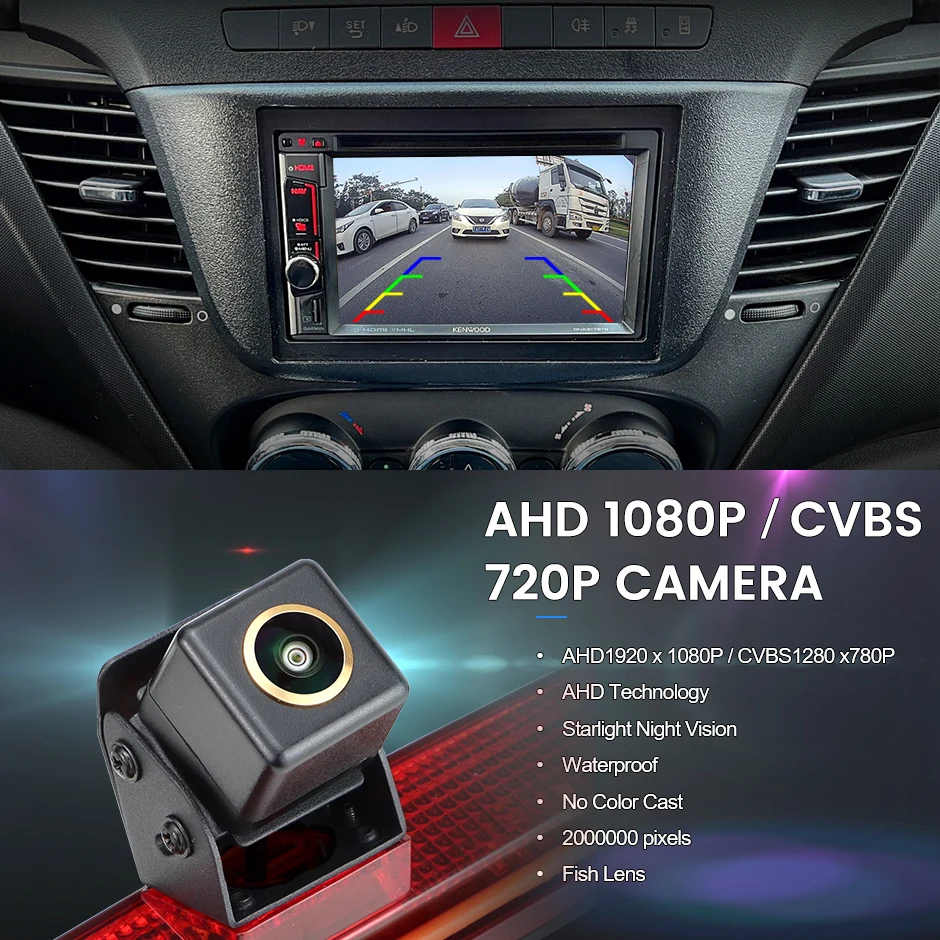

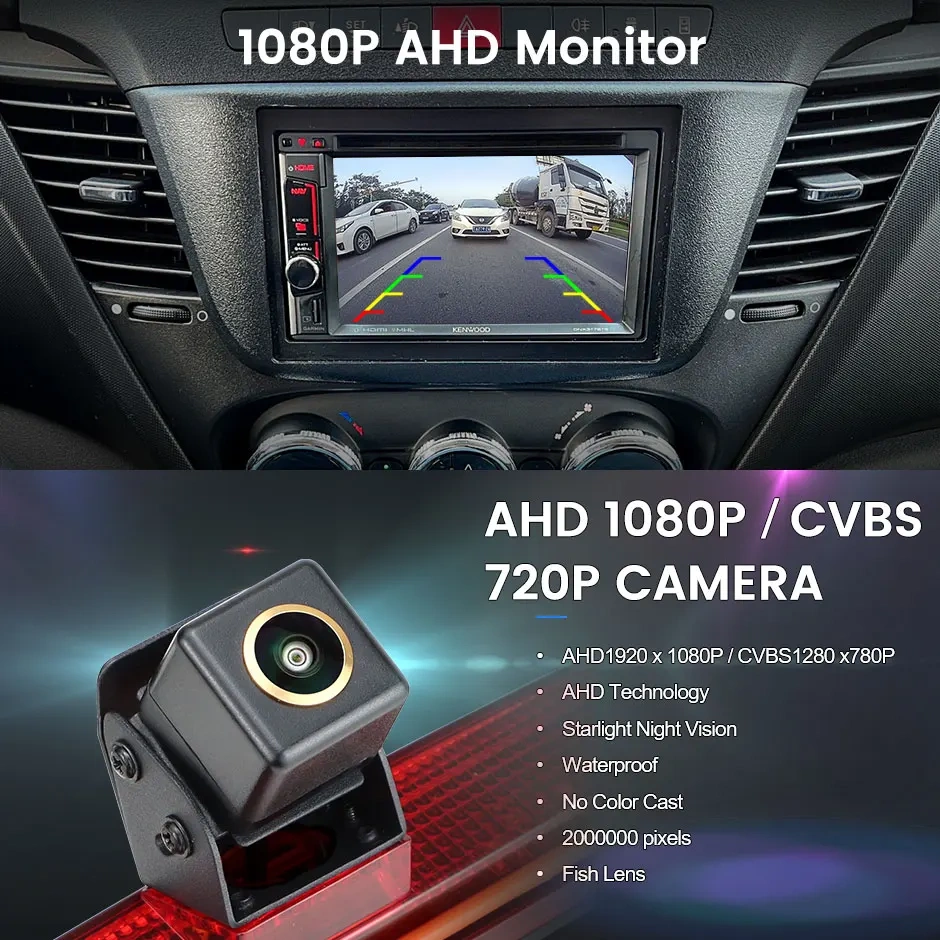

Camera Features:
• 1920*1080P / 1280*720P Peffective pixels ( Optional )
• AHD Technology ( Only support AHD monitor )
• Top GC2053 AHD Chip
• Waterproof IP68
• Wide Angle 175 Degree
• No Color Cast
• 2000000 pixels

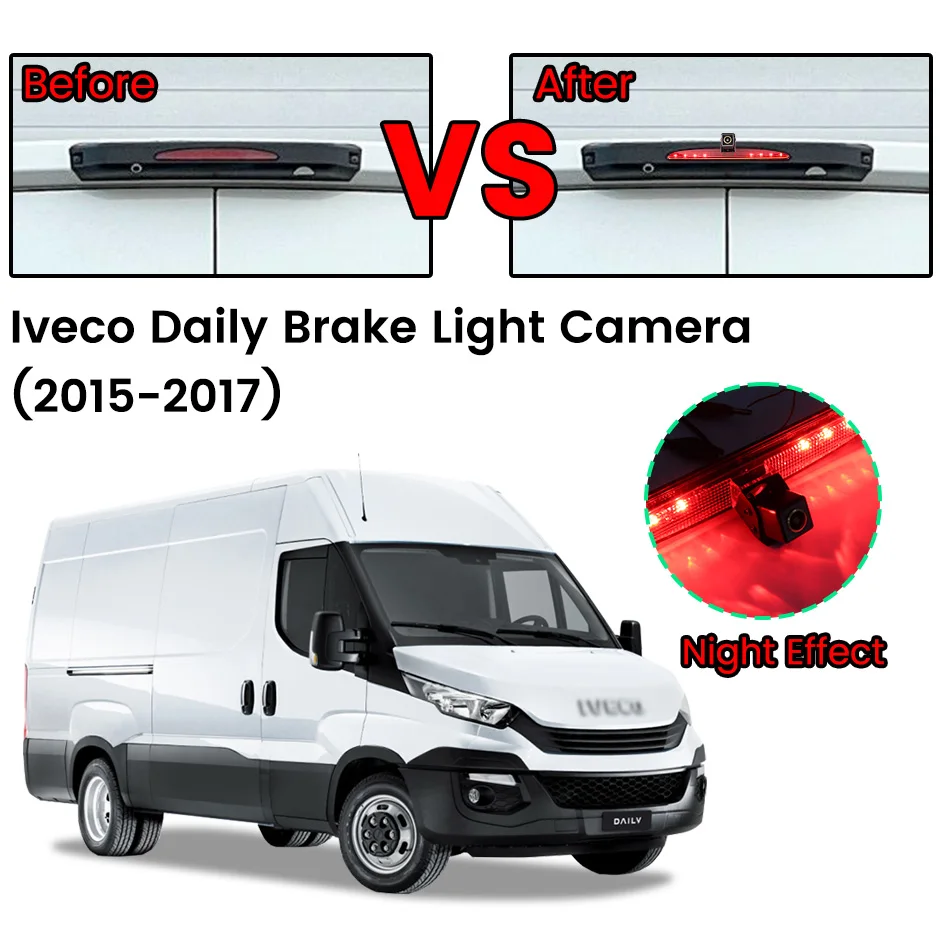

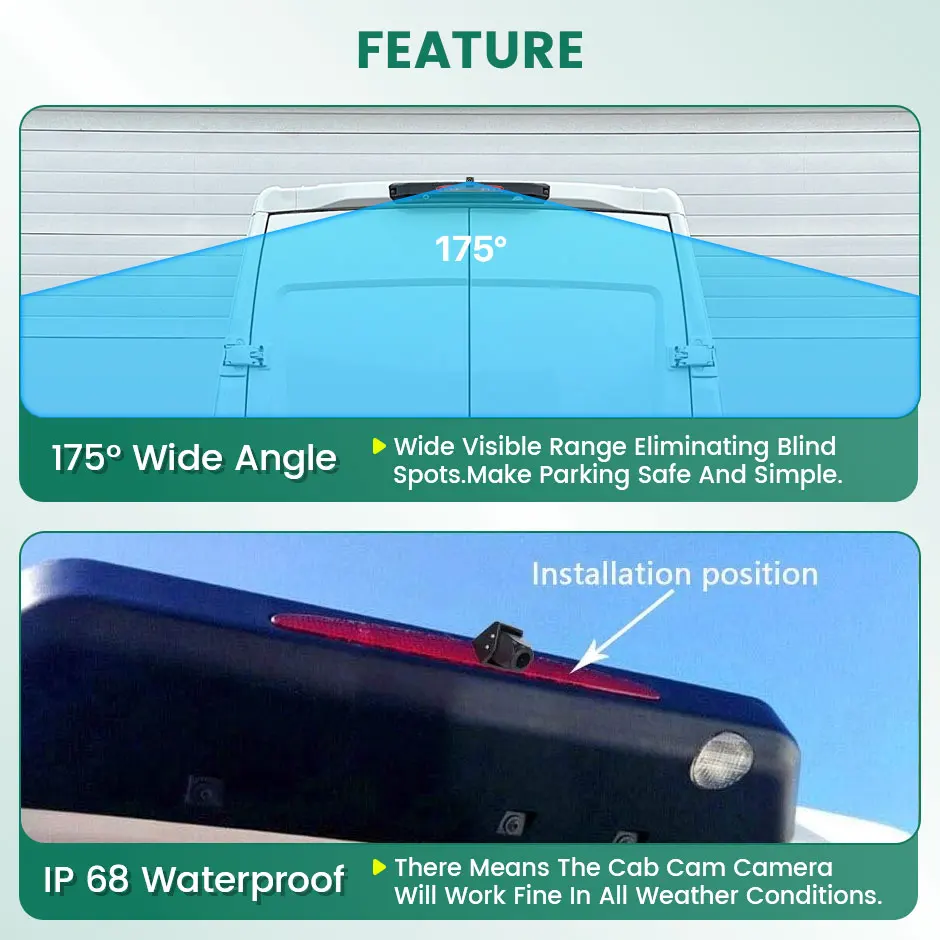

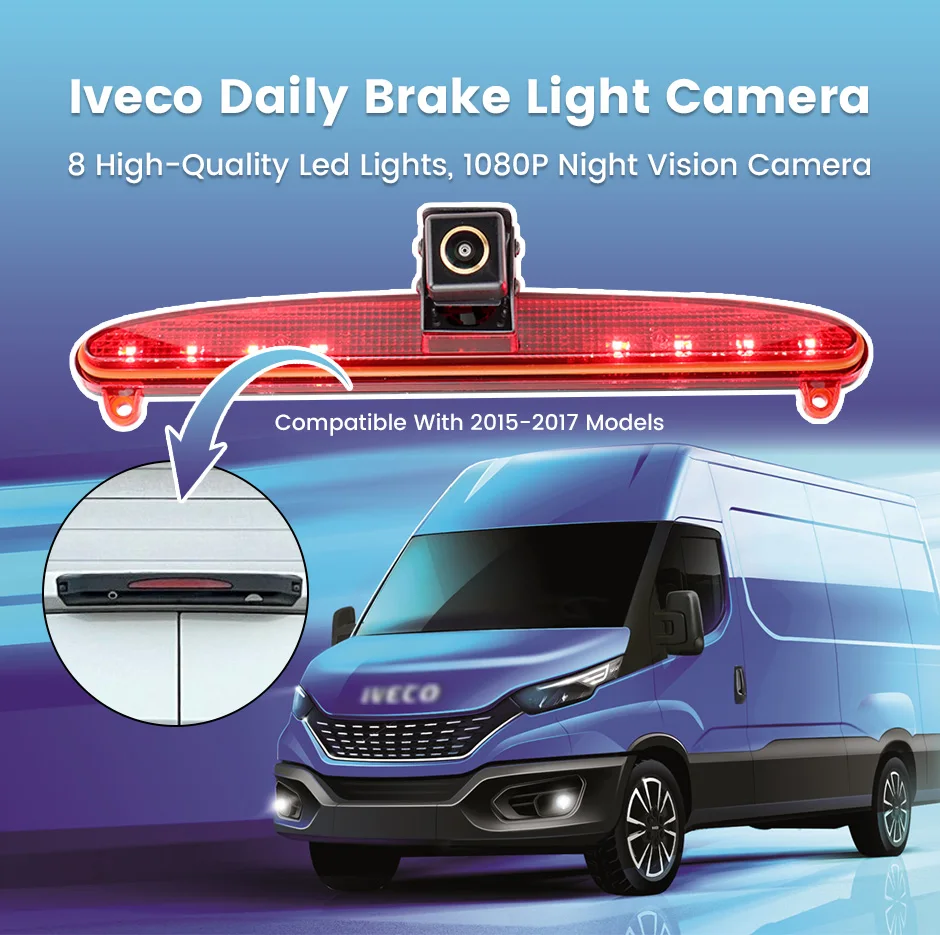

Installation location

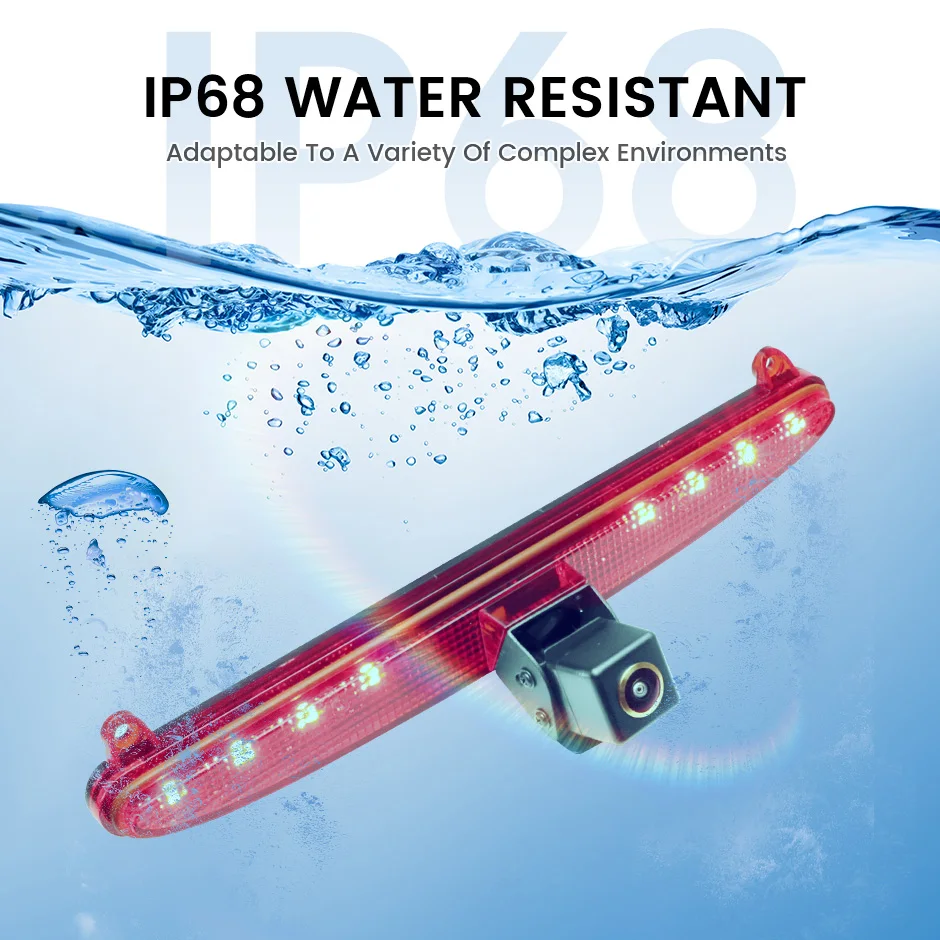

IP68 Waterproof
Support Video Signal Control and Parking Line Switch (GFA/GAHD Style)
12V-24V Integrated Step-down Module

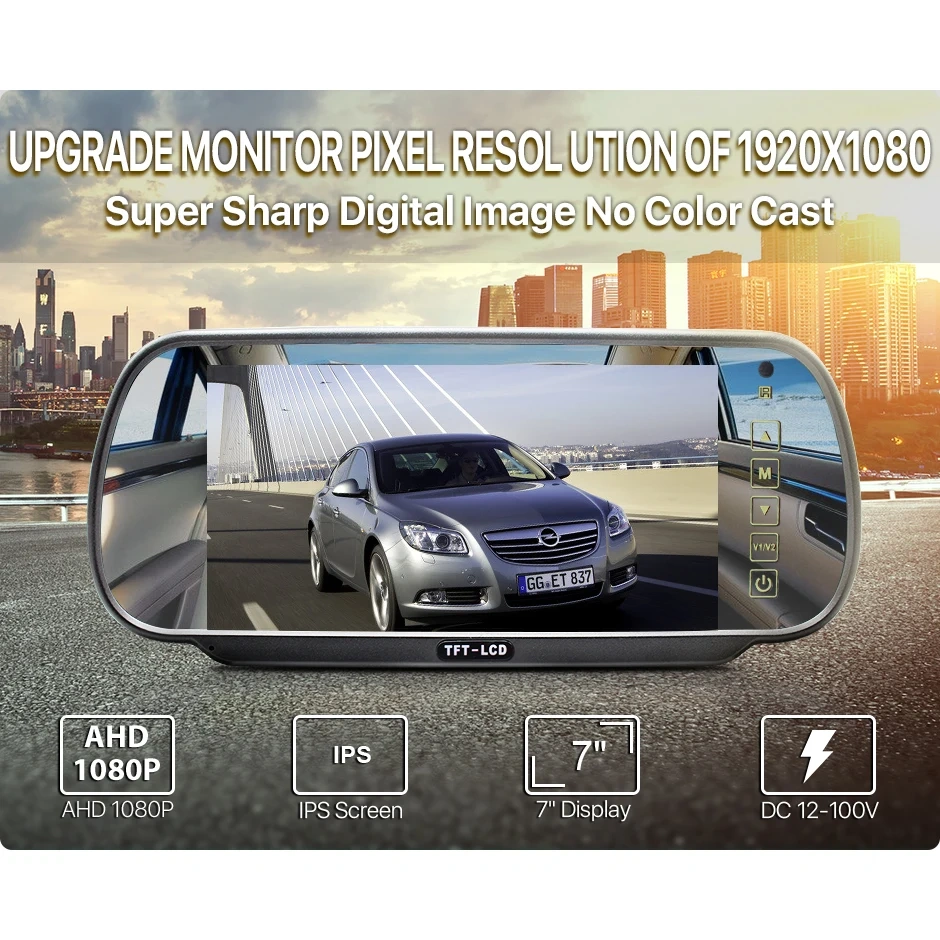

AHD Mirror Monitor
Monitor Features:
Video signal: Supports AHD and CVBS signals.
Screen size: 7-inch screen
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1024*600
IPS Screen: Support
Signal format: PAL / NTSC
Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.
Language: English, Russian, Korean, Japanese, Chinese.
Adjustable image: Support
Parking line switch: Support
Rotate the screen: Support
Power consumption: <= 6W

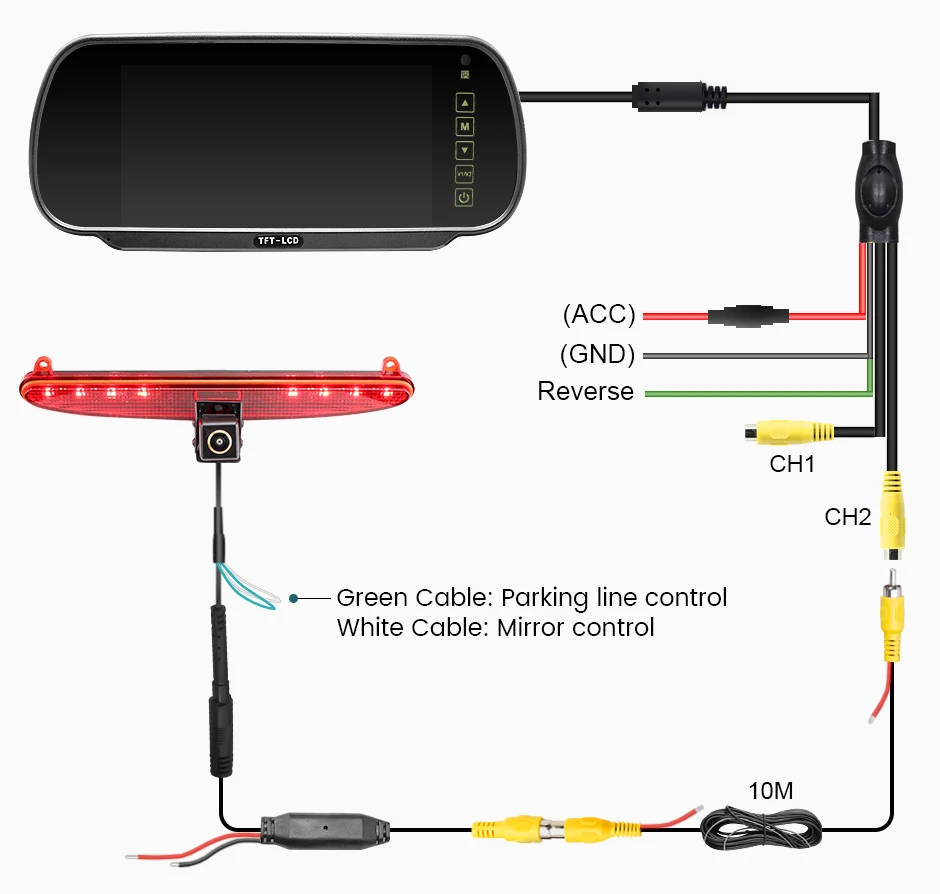

Installation Diagram
