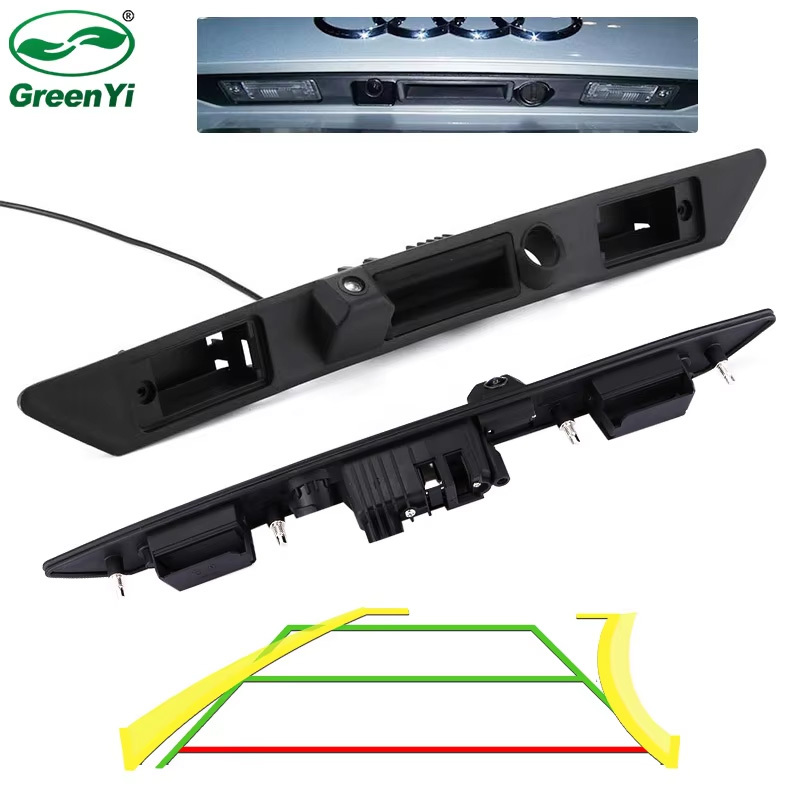

170 Degree AHD 1080P Car Trunk Handle Reverse Camera For Audi A3 A4 A6 B6 B7 S3 S6 A8 RS4 RS6 A5 Q7 2010-2014 Dynamic Trajectory

For Audi A3 A4 A6 B6 B7 S3 S6 A8 S8 RS4 RS6 A5 Q7 2010-2014

170 Degree AHD 1080P Car Trunk Handle Reverse Camera For Audi A3 A4 A6 B6 B7 S3 S6 A8 RS4 RS6 A5 Q7 2010-2014 Dynamic Trajectory

* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

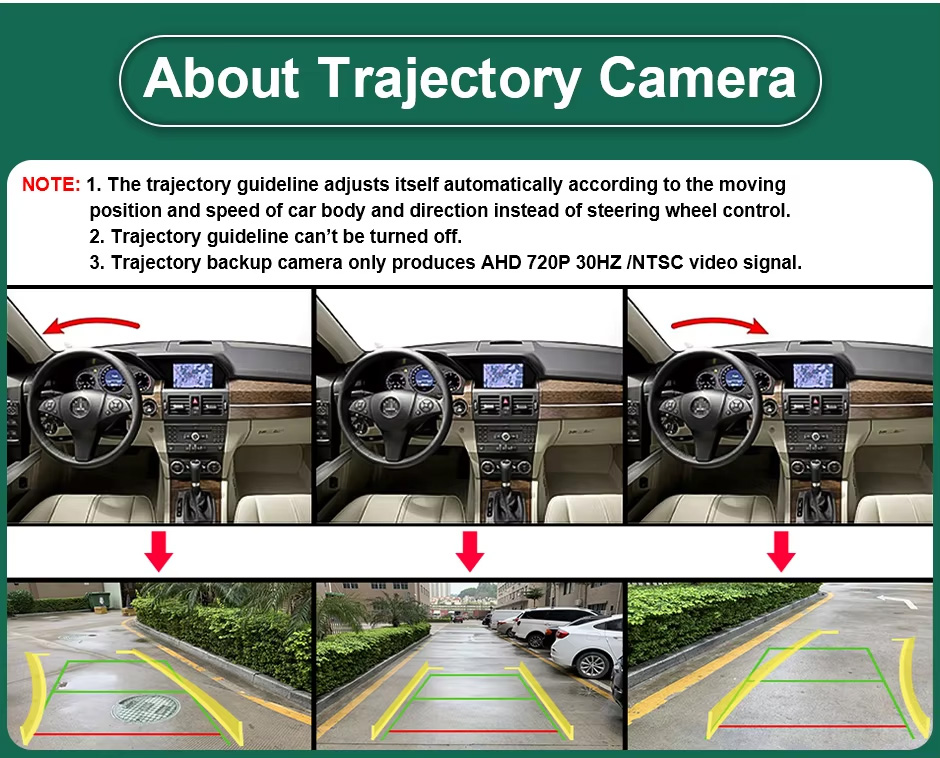

* Note: The AHD trajectory camera not need CANBUS or OBD interfaces, the camera built-in reversing Tracks module, just connect the power. Adjust the track automatically according to the moving position and speed of car body and angle, Not support steering wheel control. only fit for AHD monitor .

* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1920x1080P (PAL) or 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: 92W/200W pixels
* Video output: AHD Video Signal or CVBS Signal .

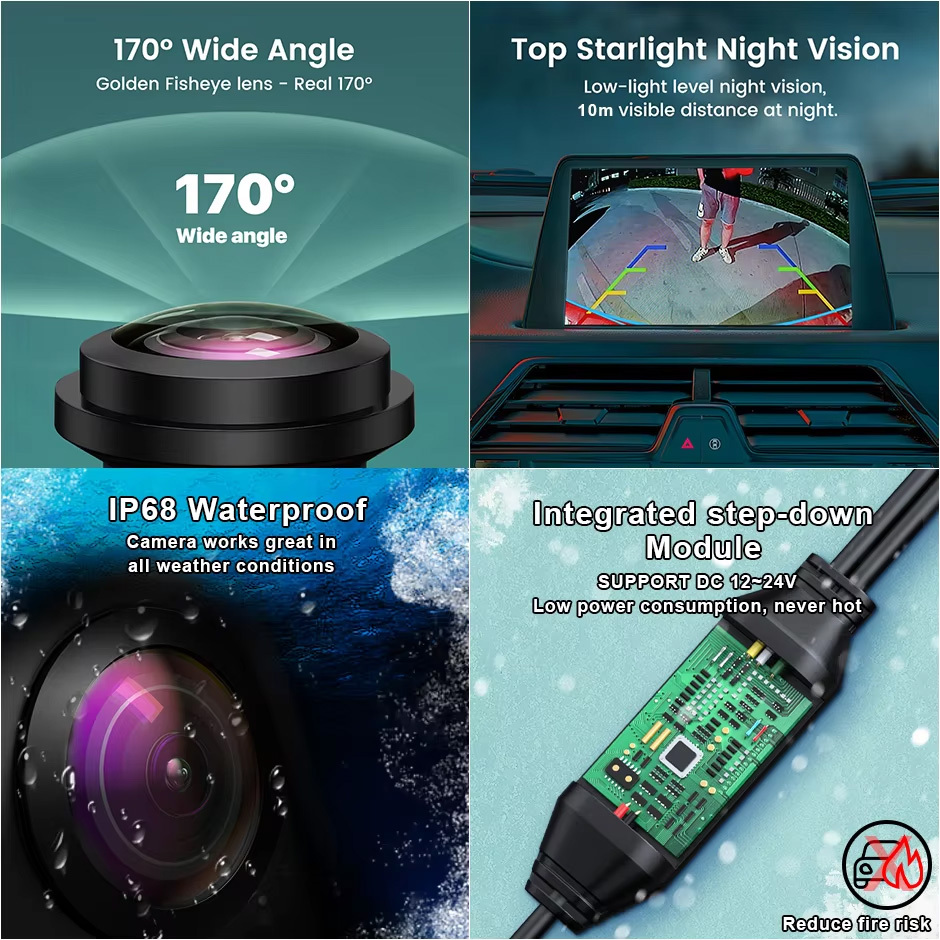

* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W

Tip:

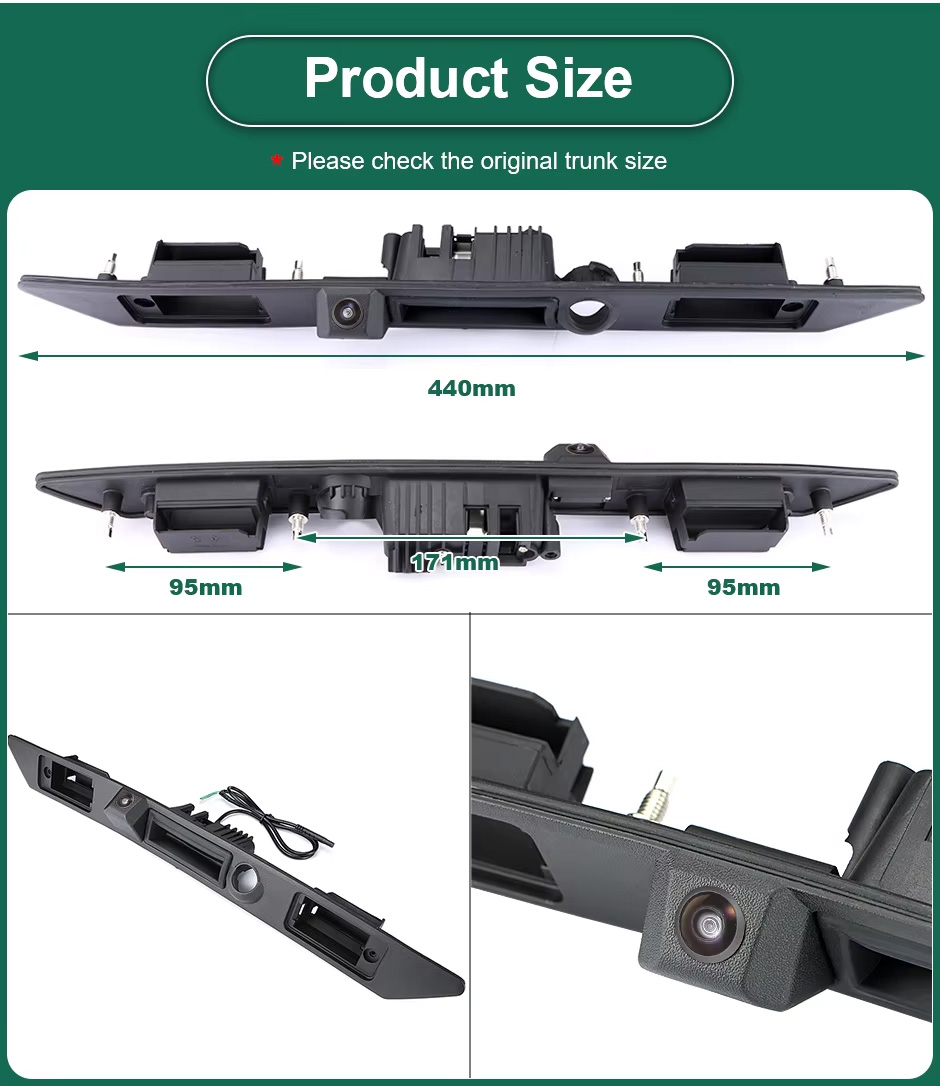

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

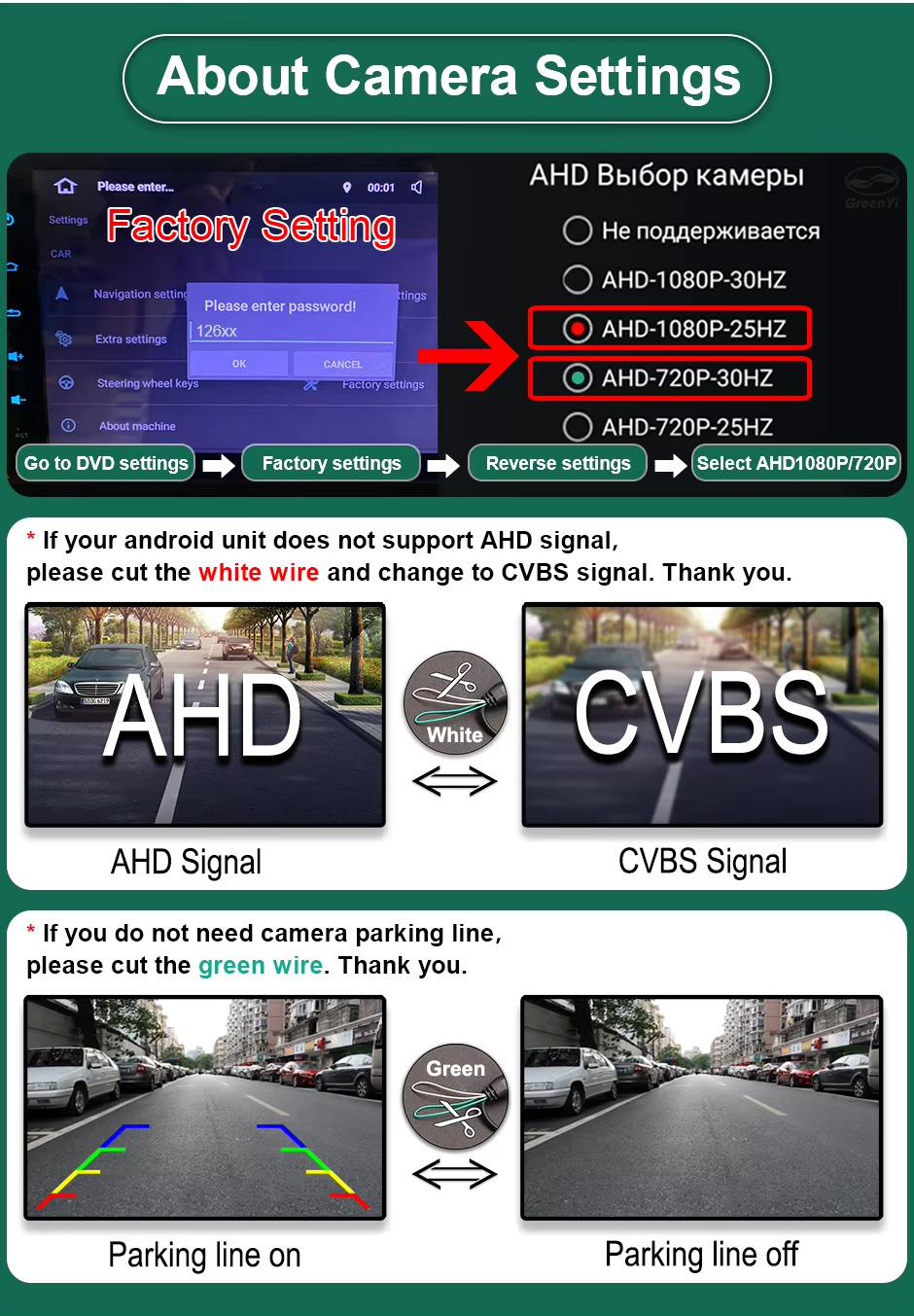

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

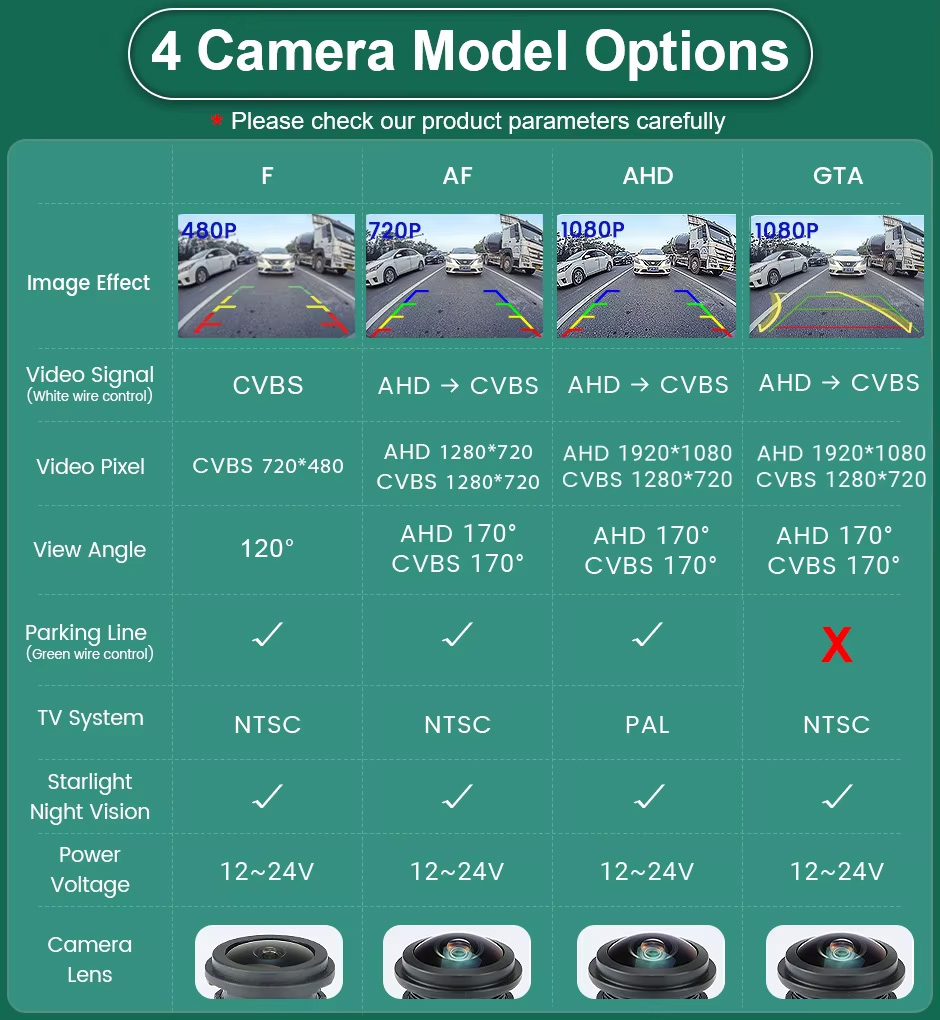

3. Optional "F" only is CVBS 7080 cheap Chips . it is 120 degree plastic flat glass lens, suitable for old android dvd and and monitor .

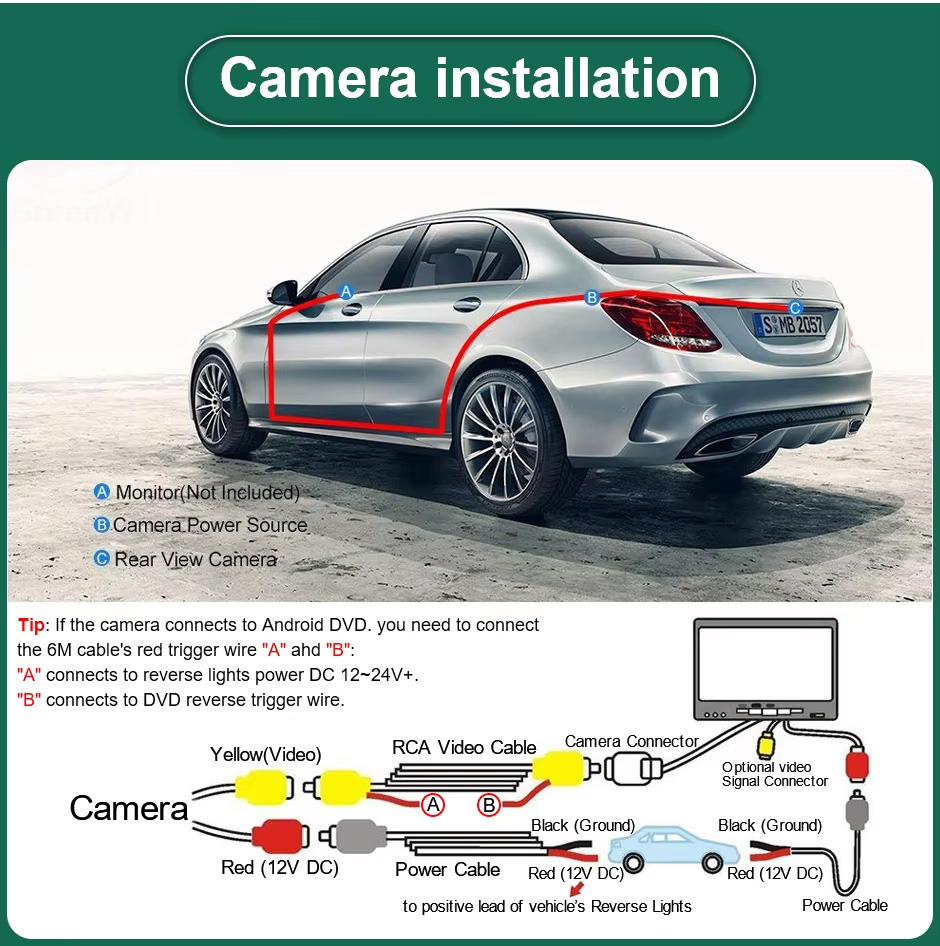

4. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
